DC 350
The GM DC350 takes label production to the next level, with highly automated, super-fast converting.
Featuring high-speed, semi-rotary varnishing and die-cutting as standard, this modular platform can be upgraded easily with value-added options including multilayer labels, laser cutter, hot foil, screen-printing modules and much more.
The DC350 combines our continuous R&D with proven product features and is fully compatible with all major digital presses for trouble-free inline converting.
Configure your converting line to exact specifications with:
- Jumbo roll unwinder with integrated roll lift
- SmartFlexo – semi-rotary flexo station(s)
- SmartLoad – automatic flexible die changing system
- Double Speed Die module – running at up to 140 m/min
- SmartStrip – servo-controlled waste matrix stripping and rewinding
- SmartLam – multilayer option for peel & reveal labels
- SmartSlit – automatic knife positioning system
- SmartCrush – ultra-quick set crush knife system
- SmartTurret – servo-controlled automatic turret rewinder
- Hot foil and screen-printing modules
- Web-advance for fast roll change
The GM DC350 platform was born to be modular, so if the market changes, new modules can be retrofitted quickly. Even third-party technology, such as a digital inkjet module, can be integrated for true hybrid production.
| Technical Specification DC350 | |
| Web Width | 50 – 350 mm |
| Substrate Thicknesses | 50 – 200 g/m² |
| Die Station | |
| Semi-Rotary Web Speed | 80 m/min |
| Full-Rotary Web Speed | 130 m/min |
| Die plate size | 50.8 – 558.8 mm |
| Rewinder/Unwinder | |
| Max. diameter on unwind | 1000 mm |
| Max. unwind reel weight | 350 kg |
| Max. diameter on dual shaft rewind | 700 mm |
| Max. diameter on turret | 450 mm |
| Core diameter | 76.2 mm |
| Flexo Station | |
| Print cylinder size | 254 – 482.6 mm |
| Spot varnish option with registration and slow run | |
| Slitting Station | |
| Knife Type | Pneumatic crush, razor, SmartCrush, shear, SmartSlit |
| Min. distance crush/razor | 12.7 mm |
| Max. number of crush/razor knives | 14 |
| Min. distance SmartCrush | 30 mm |
| Max. number of SmartCrush knives | 11 |
| Min. distance shear | 10 mm |
| Min. distance SmartSlit | 20 mm |
| Max. number of knives | 16 |
| Power / Air | 3x400V+N+PE, 32A, 6 bar |
| Size (WxDxH) | 5.9 x 2.3 x 1.7 m |
| Exhaust | Ø100 mm, 800 m3/h, external. |
| DC 350 Modules | |

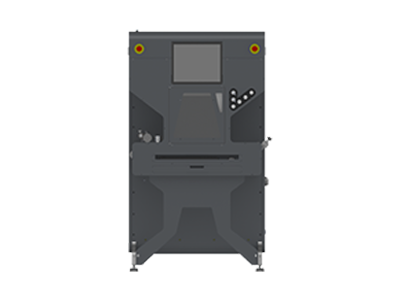

| Laser Module | |
 |
Ideal for short run, on-demand production, the GM laser cuts a wide range of substrates and can be added to existing systems in just a few days. With minimal spot size and optimized wavelength, the laser’s melting edge is minimised to eliminate burn marks. The module can be fully connected to the cloud and integrate into your MIS for automated workflow. Optional QR barcode reader enables hands-free automated job changes. |

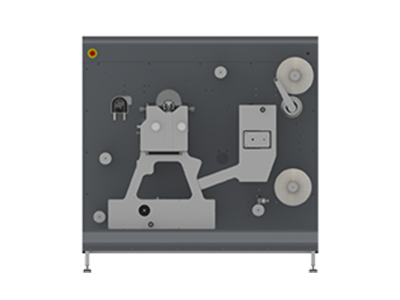

| SmartFlexo | |
 |
Add 1, 2, or 3 flexo modules to the configuration for more value-adding options. Modules can be configured as semi-rotary or full rotary re-register groups and are designed for flood varnishing, cold foiling or printing of specific colours. |

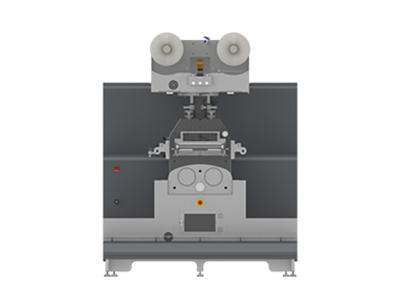

| Hot-Foil | |
 |
The 50-ton hot foil module uses multiple foil streams and features a turning tower for the largest possible design options. This all-in-one solution enables embossing and foiling in one process. It comes with built-in foil saver and electronic temperature control, while the dwell time and speed can be precisely adjusted digitally. |

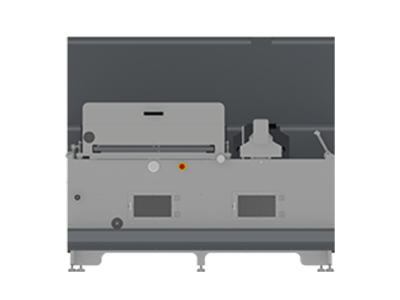

| Screen Printing | |
 |
Essential for the production of wine labels and other high-value labels, the servo-driven precision flatbed screen-printing unit can add high-build varnishes, print custom spot colours, create scratch-off effects and much more. The module can be equipped with cost-effective and widely available frames and features a large reflector UV lamp for fast and effective drying. Multiple screen-printing heads can be fitted on each line. |

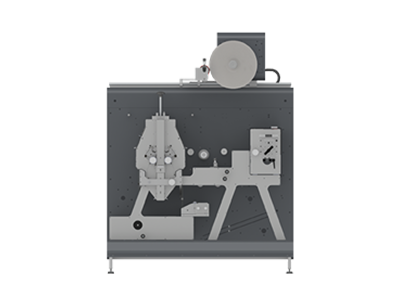

| Die-Cutting | |
 |
The semi-rotary die-cutting module sits at the heart of our finishing lines. As standard, it comes with auto-register and plate distortion adjustment for full use of older plate inventory. Optionally, it can be equipped with a plate loader and automatic GapMaster functionality. The die has a standard stroke of up to 25” supporting even the biggest labels. The standard unit can be replaced with our Double Speed Die module, which has a max speed of 140 m/min. Conventional waste matrix stripping and rewinding can be upgraded to the GM SmartStrip servo-controlled system. |

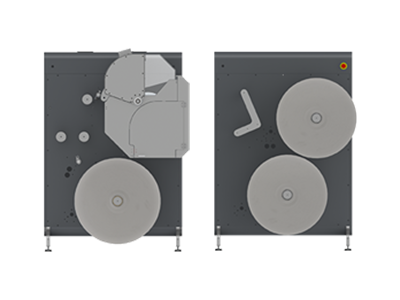

| Rewinding | |
 |
In short-run production, the operator spends a lot of time at the rewinding station, so we have given this area special attention adding stepless tension and easy to use quick-change mode with pneumatic airshafts. The rewinding section can be configured with a standard dual rewinder or a turret rewinder. In turret rewinding mode, there is the option of semi-automatic (operator web cutting) or fully automatic (automated cutting). With a changeover time of less than 10 seconds, this is one of the fastest systems on the market. |

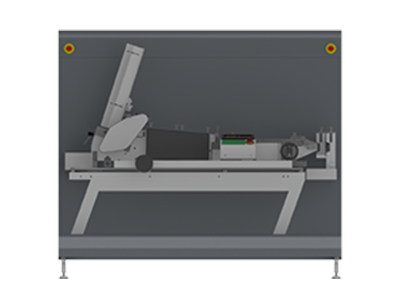

| Longford Booklet Feeder | |
 |
Integrating a high-speed surge feeder module is an ideal solution for booklet labels, coupon labels and label-on-label processing with various sizes and formats. This feeds booklets to a pinch point of the finishing system at speeds of up to 35,000 pieces per hour. |
