SC 330

Add raised varnish or fine signatur print to your labels

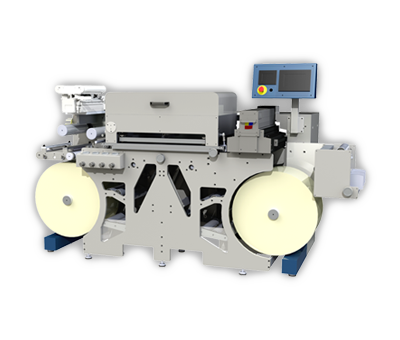

The SC330 screen printing unit from Grafisk Maskinfabrik has a printing area of 330mm(width) x 304,8mm(length) and is designed and engineered to perform screen-printing of the highest quality possible on flexible materials. After printing, the ink drying is undertaken by UV-curing(GEW). The SC330 is compatible with tooling (screens) from existing equipment.

Preparing and setting up the SC330 is very simple and fast, which makes this machine suitable to complete even very short runs. Apart from being a cost-efficient alternative to rotary printing due to the low costs of mesh and frame, screen-printing also has several other advantages e.g. easy set-up and less waste.

Technical Specification SC330
Web Width 50 – 330 mm
Substrate Thicknesses 50 – 200 µm
Speed
Machine Speed 5 – 15 m/min
Screen speed 4000 1/h
Unwinder
Diameter max. 500 mm
Core diameter 25 – 152 mm
Rewinder
Diameter max. 500 mm
Core diameter 76,2 or 152,4 mm
Frame and Print Area
Frame size 660 x 500 x 30 mm
Frame type 30 mm aluminium
Print area 330 x 330 mm
Power / Air 3x400V+N+PE, 16A, 6 bar
Size (WxDxH) 2,3 x 1,2 x 1,5 m
Exhaust Ø125 mm, 800 m3/h, external.
